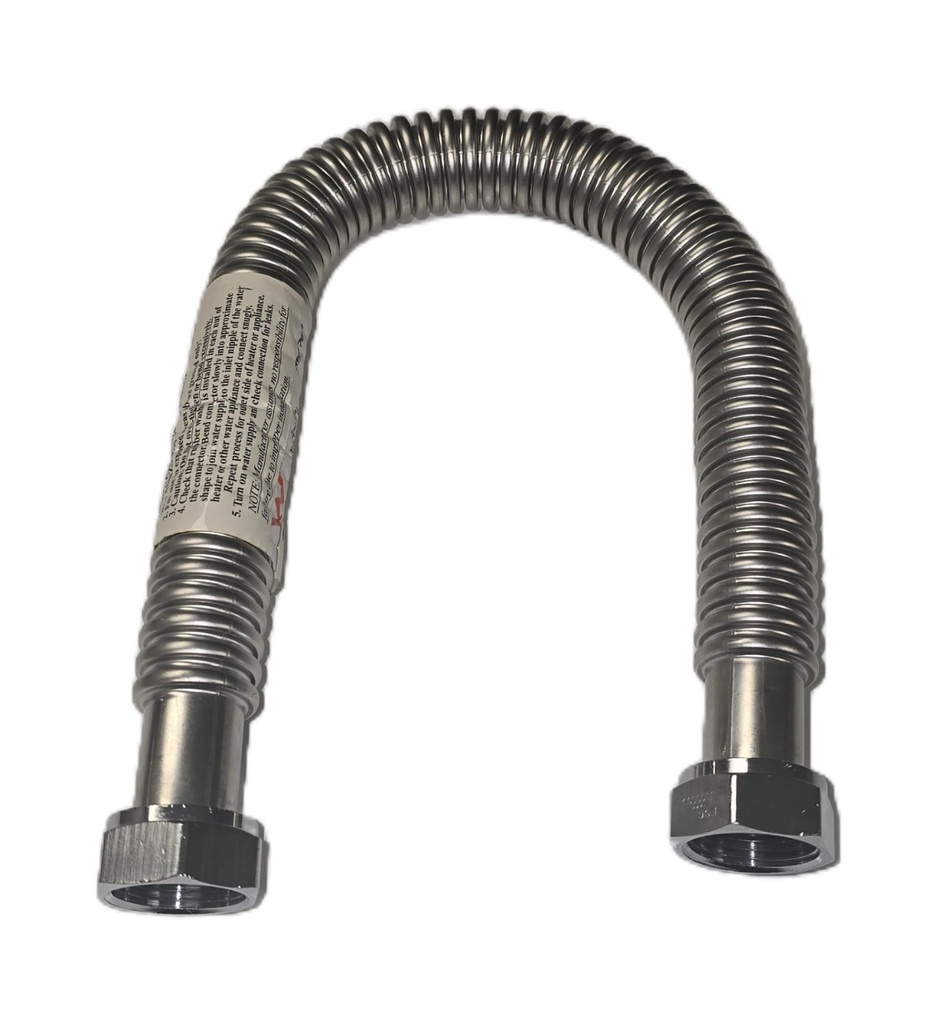

3/4" (20mm) 316 Stainless Ripple Tube Hose Connector With Flat Faced Union Ends

22.62 22.62
0% Off

3/4" (20mm) 316 Stainless Ripple Tube Hose Connector With Flat Faced Union Ends

2

3/4" (20mm) 316 Stainless ripple tube hose connector with flat faced union ends

22.62 22.62 22.62 NZD

0.00

Days
:
Hours
:
Mins
:
Secs
  • Length

This combination does not exist.

Click here for Rapid Info,
Leadtime & Pricing
Product Code:
SSHTWM5T

Product Features -  All pricing exclusive of GST

  • Stainless steel corrugated stainless steel construction.
  • Saves time and money with ease of installation.
  • More flexible than braided type connectors.
  • Will not crimp or kink.
  • No rubber or plastic internals to reduce flow.
  • No deformity in curvature and will hold bend.
  • Will not discolor, corrode or rust.
  • Maximum recommended working pressure of 16bar
  • Specially formulated EPDM seals 85°c and intermittent temperature spikes of 100°c
  • Suitable for residential and commercial potable water applications.
  • Watermark approved.

  • Technical Support
  • Express Shipping
  •
  • 24/7 Web Ordering
Normally Available For Immediate Dispatch

Disclaimer Conditions of use must be adhered to:

  • These hoses are designed for commercial and industrial use only (non-general consumer)
  • Specially formulated EPDM seals 85°c and intermittent temperature spikes of 100°c
  • Connectors shall not be bent with a tighter radius than 77mm for all sizes.
  • Matching stainless or brass flat face thread adaptor shall be used with a sealing face matching the width of the gasket.
  • Must only be installed by qualified plumber, or experienced pipefitter.
  • Connectors are designed to be formed/bent at installation (singular forming)  and minor spasmodic adjustments to allow for disconnection of connected fittings/fixtures. (repetitive rebending is not permitted, thin can lead to work hardening fatigue of the Stainless)
  • Connectors shall not be used for excessive vibration/movement

Specifications

Length 450mm or 600mm or 900mm
