Pressure Reducing Valve Brass Threaded - Integral Filter, Unions & Gauge
0%
Off

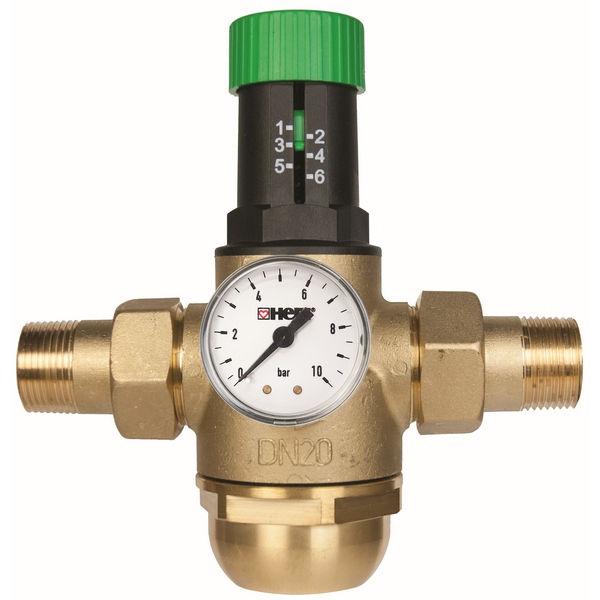

Pressure Reducing Valve Brass Threaded - Integral Filter, Unions & Gauge
2Brass pressure-reducing valve/pressure limiting valve DZR brass body, EPDM diaphragm and seal, with in-built strainer male union connections, and pressure gauge are included. Upto 16 bar inlet with an outlet pressure range 1.75 - 6 bar suitable for Hot and cold water applications.
Product Features - All pricing exclusive of GST
- Double union ends with male thread ends.
- Perfect for cooling or boiler system top-up / Feed valve or used as a pressure limiting valve for protection of downstream plumbing systems.
- Compact shape, the body of dezincification-resistant brass.
- Filter service key and pressure gauge manometer integrated.
- Brass cap means can be used for hot water - Max. temperature 70°C
- Operating pressure to 16 bar, setting range from 1.5 to 6 bar

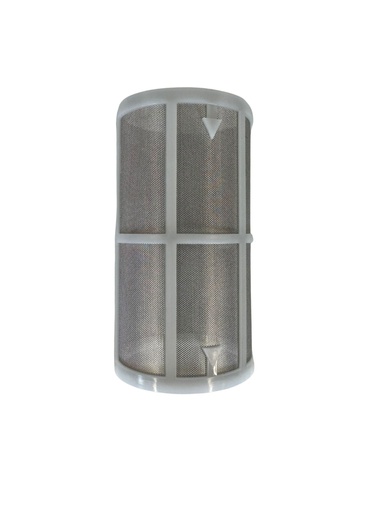

- Stainless steel strainer mesh with 0.3 mm mesh width.
- WRAS drinking water approved
Compact shape, body of dezincification-resistant brass, cap of transparent plastic. Filter key and manometer included. Max. temperature 70 °C, operating pressure to 16 bar, setting range from 1.5 to 6 bar, stainless steel strainer mesh with 0.3 mm mesh width.
Specifications
| Connection Size | 15mm or 20mm or 25mm or 32mm or 40mm or 50mm |
