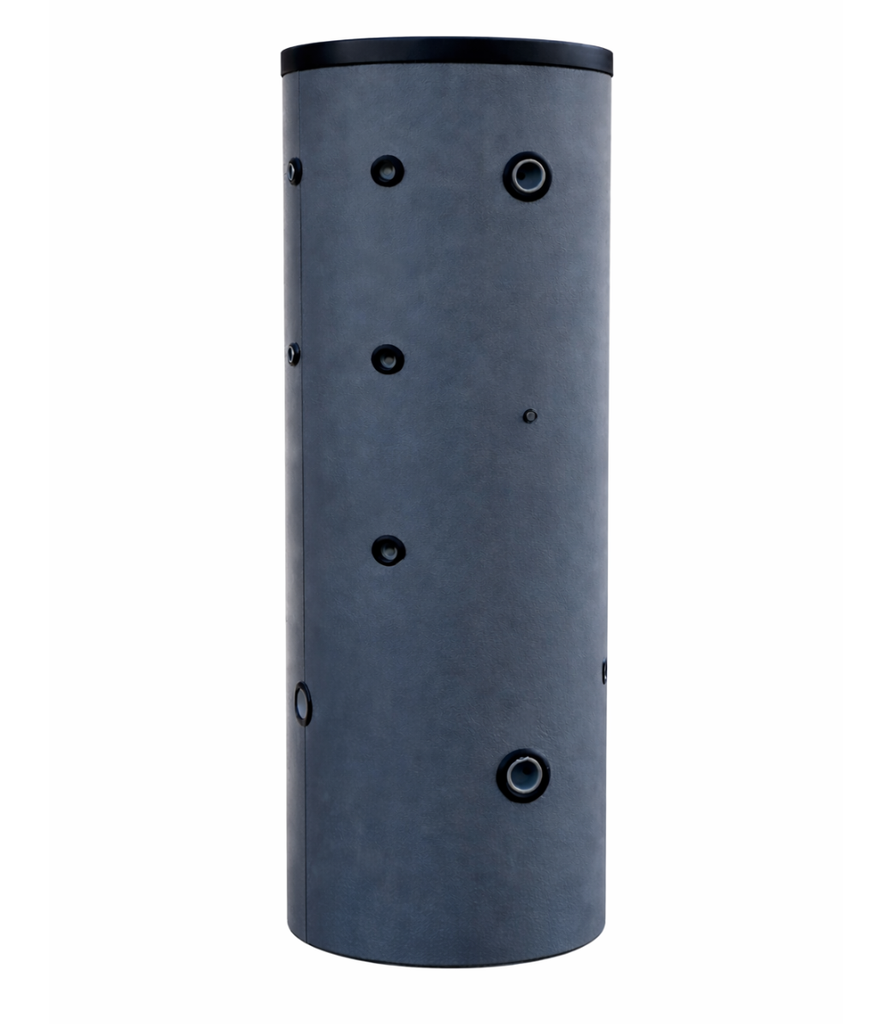

ThermaCon Buffer Tank Rigid Insulated Steel Screwed Connections (6 Port)
2Heating or Cooling water Buffer tank, Carbon Steel with 6 screwed connection ports, Rigid insulated and PVC Jacket cover for Indoors.
Product Features - All pricing exclusive of GST
- Carbon steel 6-bar rated Tank, external Anti-rust painted.
- 6 x 2 or 4" Threaded female BSP Ports at 0°, 180°, 270°

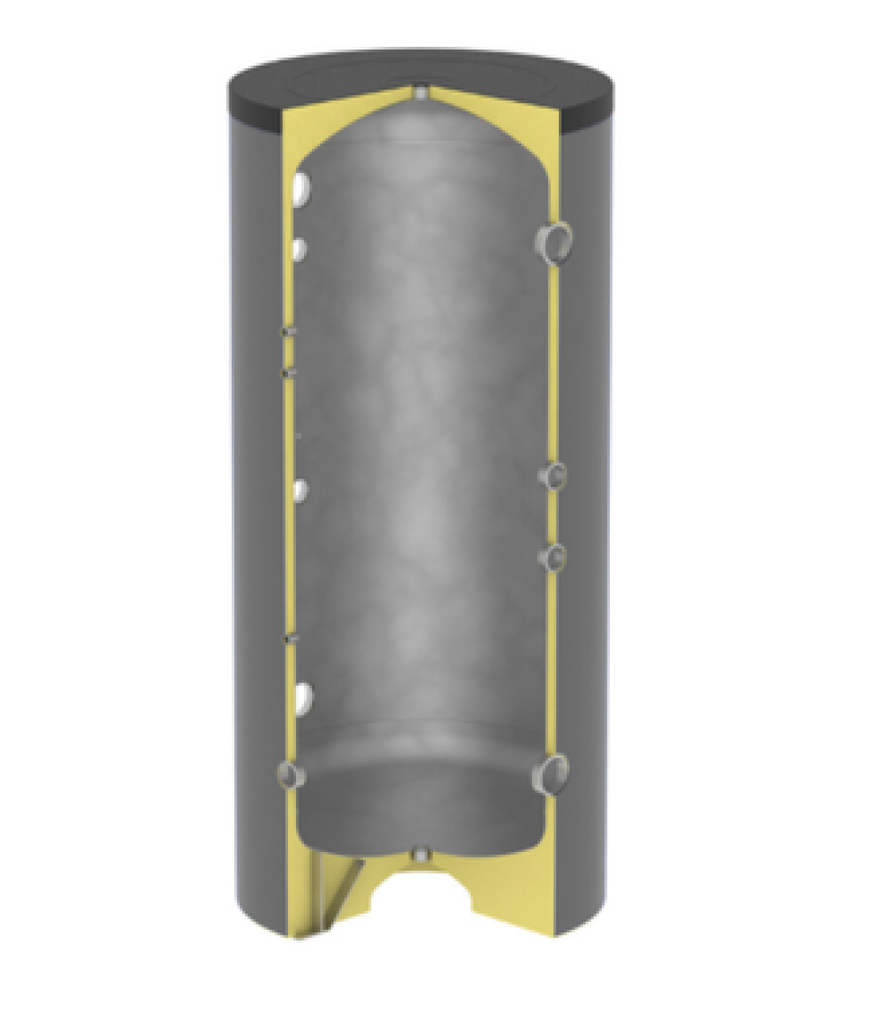

- Insulation: 55mm closed-cell foam (hard type) with PVC dress jacket skin)
- Fluid temp: -10/+60°c (80°c on request)
- Aux Connections/ports: 32mm BSP drain and vent. 8 x 20mm side ports for gauges/instruments.
- Can be used as a 4-port or 2-port buffer or distribution tank.
- Normal applications include: Hot water heat pump thermal buffer tank, Water chiller inertia tank, Boiler system primary-secondary buffer, and Hydronic heat storage.
Specifications
| Thermacon Tank Size | 300L or 500L or 1000L |
