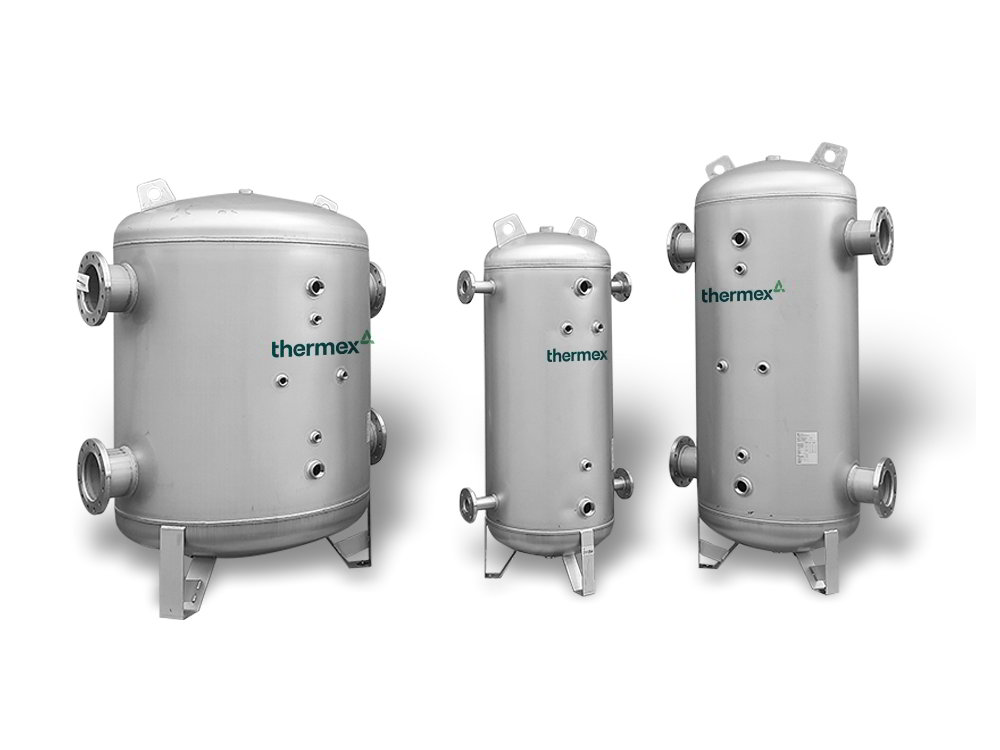

    Thermex TSSUZ 316 Stainless Steel Buffer Tank

    2

    Thermex TSSUZ Series 316 Stainless Steel Buffer Tank are ideal for applications requiring large volume chilled water storage in heating or chilled water circuits. Comes with blind Flanges to enable be use as a 2 port Buffer vessel.

    Days
    :
    Hours
    :
    Mins
    :
    Secs
    • Buffer Tank Volume

    This combination does not exist.

    Click here for Rapid Info,
    Leadtime & Pricing
    Product Code:
    SSHTWM5T
    Product Features -  All pricing exclusive of GST
    • See the description tab for all sizes and dimensions.
    • Material 316 Stainless steel
    • Suitable for both chilled and heating applications.
    • It can be clad for outside applications.
    • Max pressure 6 Bar.
    • low profile for tight plant spaces.
    • Vent and drain connections.
    • Flanges are PN10/16 as standard.
    • Technical Support
    • Express Shipping
      •
    • 24/7 Web Ordering

    Model Volume (L) Height (mm) Diameter (mm) Flanged Connections
    TSSUZ0500L0650 500 1841 650 4 x 50mm
    TSSUZ1000L0800 1000 2152 800 4 x 150mm
    TSSUZ1500L1200 1500 1740 1200 4 x 150mm
    TSSUZ2000L1250 2000 2002 1250 4 x 200mm
    TSSUZ2500L1400 2500 2164 1400 4 x 200mm
    TSSUZ3000L1600 3000 2124 1600 4 x 200mm
    TSSUZ4000L1600 4000 2582 1600 4 x 200mm

    Model Volume (L) Height (mm) Diameter (mm) Flanged Connections
    TSSUZ0500L0650 500 1841 650 4 x 50mm
    TSSUZ1000L0800 1000 2152 800 4 x 150mm
    TSSUZ1500L1200 1500 1740 1200 4 x 150mm
    TSSUZ2000L1250 2000 2002 1250 4 x 200mm
    TSSUZ2500L1400 2500 2164 1400 4 x 200mm
    TSSUZ3000L1600 3000 2124 1600 4 x 200mm
    TSSUZ4000L1600 4000 2582 1600 4 x 200mm

    Specifications

    Buffer Tank Volume 500 or 1000 or 1500 or 2000 or 2500 or 3000 or 4000
