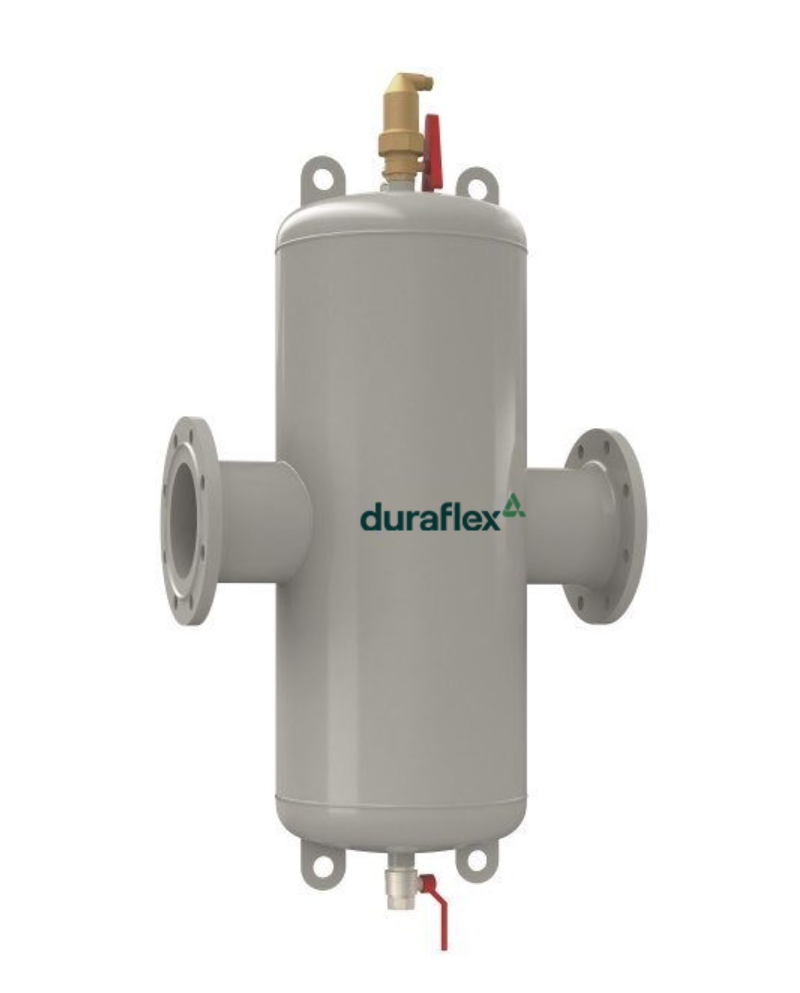

Duraflex EcoTwin Dirt & Air Separator Flanged Standard Flow
Duraflex EcoTwin Dirt & Air Separator Flanged Standard Flow
2Duraflex EcoTwin Dirt Air Separators work ultra-efficiently in every heating & cooling system. Removes harmful particles of dirt, sludge and air.
Product Features - All pricing exclusive of GST
- Flanged connections
- 65mm max volume 20 m3-hr/5.5 L-sec
- 80mm max volume 27 m3-hr/ 7.5 L-sec
- 100mm max Volume 47 m3-hr/ 13 l-sec
- 125mm max volume 72 m3-hr/ 20 L-sec
- 150mm max volume 108 m3-hr/30 L-sec
- Connection - DN 50 - DN 600 available on request
- Volumetric Flow - 25 - 3000 m3/h
Duraflex EcoTwin Dirt Air Separators work ultra-efficiently in every heating & cooling system. Even scarcely visible, harmful particles of dirt and sludge are separated, looking after the system and saving operating and maintenance costs.
The air discharge capacity of these devices is very high. They are capable of automatically removing all the air present in the system down to micro-bubble level. At the same time, they separate dirt and sludge contained in the water in the circuit and collect it in the lower part of the valve body, from where it can be drawn off.
Deaerated and cleaned water circulating through the system allows it to function under optimal conditions without encountering problems of noise, corrosion, localised overheating or mechanical damage.
Specifications
| Air Separator | 65mm or 150mm or 50mm or 80mm or 100mm or 125mm |
