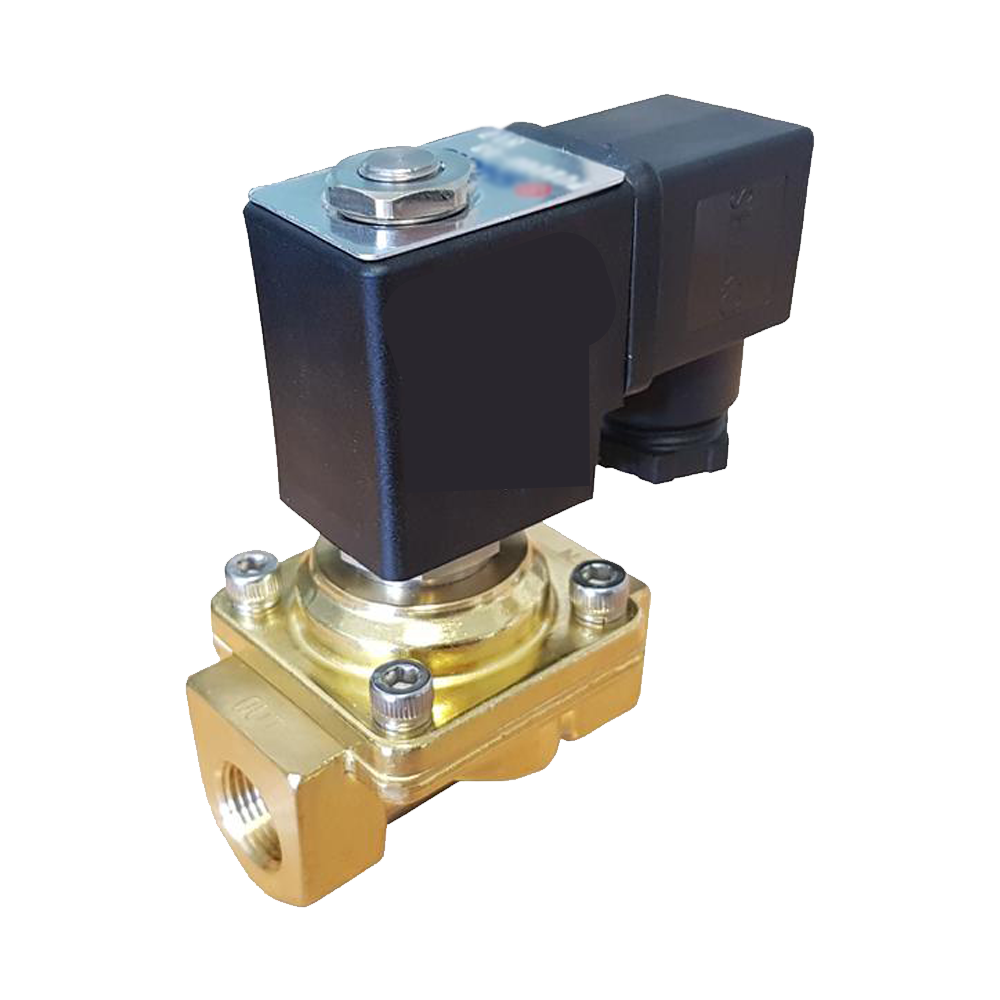

10mm (3/8") Brass Solenoid Valve Normally Closed Assisted Lift with Coil and Plug

Normally closed 2 way brass solenoid valve used assisted lift design for ON/OFF control of fluids and gas media that are compatible with the construction materials.

  • Coil Voltage
  • Plug
Add to cart
Category: Solenoid Valves
Product Features:
  • 10mm - 3/8" female BSPP thread connections.
  • Function: 2/2 way normally closed (valve is closed when coil is de-energized)
  • Brass body suitable for potable water (WRAS approved)
  • EPDM Seals & gasket
  • Operation: Zero rated
  • Coil and plug available in 12VDC, 24VDC, 24VAC, 240VAC and others on request.
  • Opening/closing time: Approx. 50ms
  • CE approved, class H insulated & IP65 rated coil
  • Suitable for use with air, water, light oil and more
  • Maximum operating pressure: 0-7 bar for 3/8",1/2" and 0-5 bar for 3/4" and 1" *depending on coil
  • Operating ambient temperature range: 4°C - 60°C
  • Process fluid temperature range: 4°C - 90°C
Click here for Rapid Info,
Leadtime & Pricing
Normally Available For Immediate Dispatch
Contact Us
Product Code:
N/A

Assisted lift solenoids are Sometimes referred to as a direct-acting, hung diaphragm, kick pilot, or zero-rated valve, the Brass Solenoid Valve Normally Closed Assisted lift Assembly valve is designed to physically lift the diaphragm and utilise any pressure differential between inlet and outlet to assist the opening or closing of the valve.
