32mm - 1 1/4" Stainless Steel Solenoid Valve Normally Closed Pilot Assisted Lift with Coil and Plug

290.21 290.21
0% Off

32mm - 1 1/4" Stainless Steel Solenoid Valve Normally Closed Pilot Assisted Lift with Coil and Plug

2

Normally closed 2 way stainless steel solenoid valve used pilot assisted lift design for ON/OFF control of fluids and gas media that are compatible with the construction materials.

290.21 290.21 290.21 NZD

0.00

Days
:
Hours
:
Mins
:
Secs
  • Coil Voltage
  • Plug

This combination does not exist.

Product Code:
SSHTWM5T

Product Features -  All pricing exclusive of GST

  • 32mm - 1 1/4" stainless steel solenoid valve
  • Function: 2/2 way normally closed
  • Viton Seals & gasket
  • Operation:  pressure assisted, requires Min 0.5 Bar differential
  • Coil and plug available in 12VDC, 24VDC, 24VAC, 240VAC and others on request.
  • Opening/closing time: Approx. 50ms
  • CE approved, class H insulated & IP65 rated coil
  • Suitable for use with air, water, light oil and more
  • Maximum operating pressure:  0.5 to 10 Bar
  • Operating ambient temperature range: -10°C - 60°C
  • Process fluid temperature range: -10°C - 90°C

  • Technical Support
  • Express Shipping
  •
  • 24/7 Web Ordering
Normally 2 Days

Servo-assisted pilot solenoids:

This principle uses a direct-acting plunger valve as the pilot valve and a flexible diaphragm as the seal for the main seat.  As soon as the pilot valve opens, the fluid chamber above the diaphragm is discharged.  The media pressure within the diaphragm raises the diaphragm and opens the valve so that the medium can flow.  If the pilot valve is closed, the media pressure above the diaphragm builds up again through the small pilot tube/hole opening and the closing process is assisted by the closing spring.  Minimal differential pressure between the inlet and outlet is necessary for complete opening and closing.

Application:
The main uses for these valves are clean liquid or gaseous media such as compressed air, water, hydraulic oils, etc.  The small pilot valve makes them less expensive than direct-acting valves for use with higher pressures and larger diameters.
Since pilot-controlled valves (also: servo-assisted valves) have only a small pressure equalisation hole in the diaphragm, up steam strainer is recommended.  Coil voltages are lower than direct acting due to less force needed to open the valve.

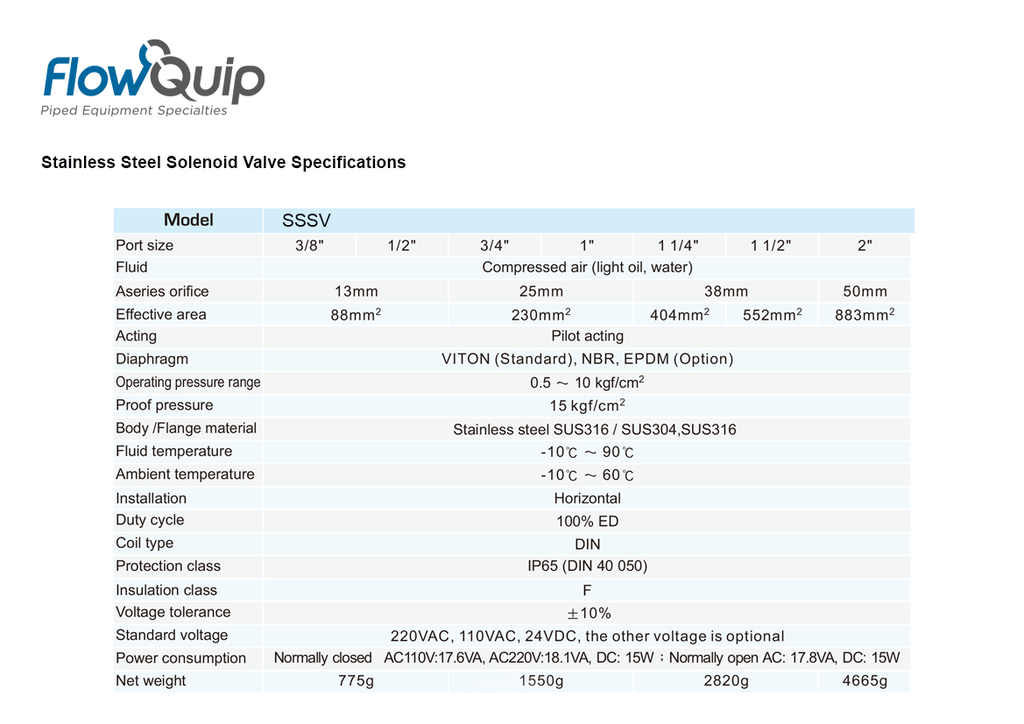

Specifications

Coil Voltage 12VDC or 24VDC or 24VAC or 240VAC
Plug Standard or AC LED or DC LED
