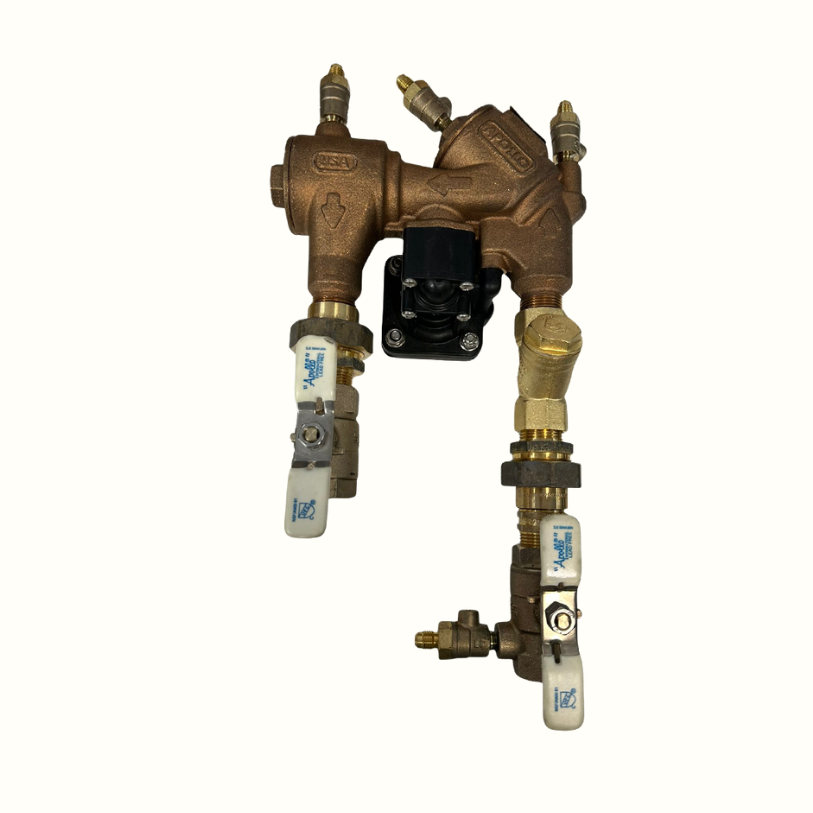

Apollo RP4AN RPZ Compact Backflow Valve Only
2The RP4AN series Compact Body RPZ valves are perfect for mounting in an enclosure, or tight spaces. The valve has vertical inlet and outlet connections.
Product Features - All pricing exclusive of GST
- Valve only (Does not come with isolators pictured.)
- Great for irrigation assemblies.
- The smallest footprint eliminates elbows for
- compact and economical installation
- Top-mounted test cocks with SAE flare fittings are standard to speed up and simplify testing.
- Low-pressure loss documented by independent approval agencies
- Easily removable modular check valve cartridge
- Captured stainless steel springs
- Apollo® ball valves w/ SS handles & nuts standard
- Modular Relief Valve
- Chloramine-resistant elastomers
- No special tools required
- Designed, cast, machined, and assembled and tested IN THE USA
- Theft-deterrent coating (optional)
The 4A series is a reduced-pressure assembly. Production began in 2008. All valves are now fully lead-free bronze body (LF) construction The check covers are a threaded access style. The check components are a modular glass-filled PPO plastic and can be removed from the body for repair. Spring tension is contained when the check covers are removed. Check discs are silicone. The relief valve utilizes a bolted access cover. Spring tension is contained when the cover is removed. The letter “n” in the model designation refers to the n pattern assemblies with the up and down installation orientation in sizes 20 (3/4") and 25mm (1")
Specifications
| Size | 20mm or 25mm |
