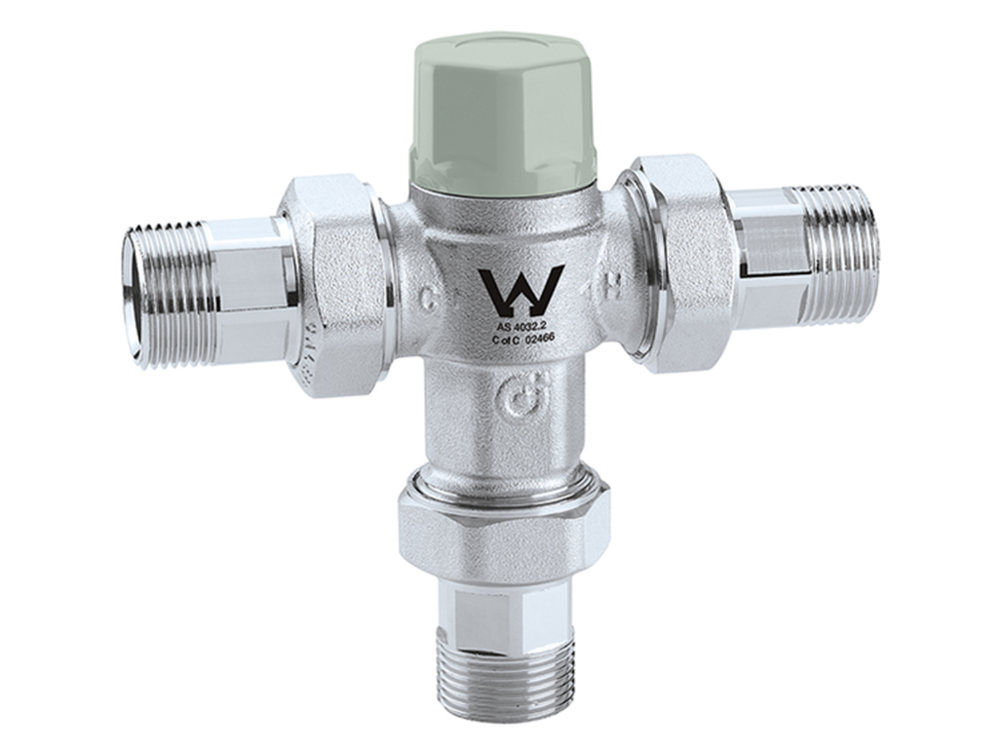

Caleffi 5213 Tempering Valve with Hot and Cold Check Valves and Straight Unions
2Caleffi 5213 tempering valve with hot and cold check valves and straight unions. Tried and proven TMV valve for all point-of-use fixtures or small groups of fixtures. Checks on both hot and cold prevent surges, backflow and valve fluctuations. Union's make servicing super easy.
Product Features - All pricing exclusive of GST
- Suitable most taps, basins, showers and other fixtures for Hospitals, Factorys,
- AU Standards approved thermostatic valve with 15mm unions with Oring Flat face seals.
- For multi point of use applications only
- Minimum flow rate for stable operation: 4L/min
- Recommended working pressure: 100 – 500kPa (balanced)
- Kv = 25L/min
- Union connectors with o-ring seal with hot and cold check valves and strainers
- Temperature range adjustable: 30 – 50°C
- Temperature control: +/- 3°C
- Max. operating temperature: 85°C
- Body in dezincification resistant brass
Caleffi 5213 tempering valve with hot and cold check valves and straight unions. Tried and proven TMV valve for all point-of-use fixtures or small groups of fixtures. Checks on both hot and cold prevent surges, backflow and valve fluctuations. Union's make servicing super easy.

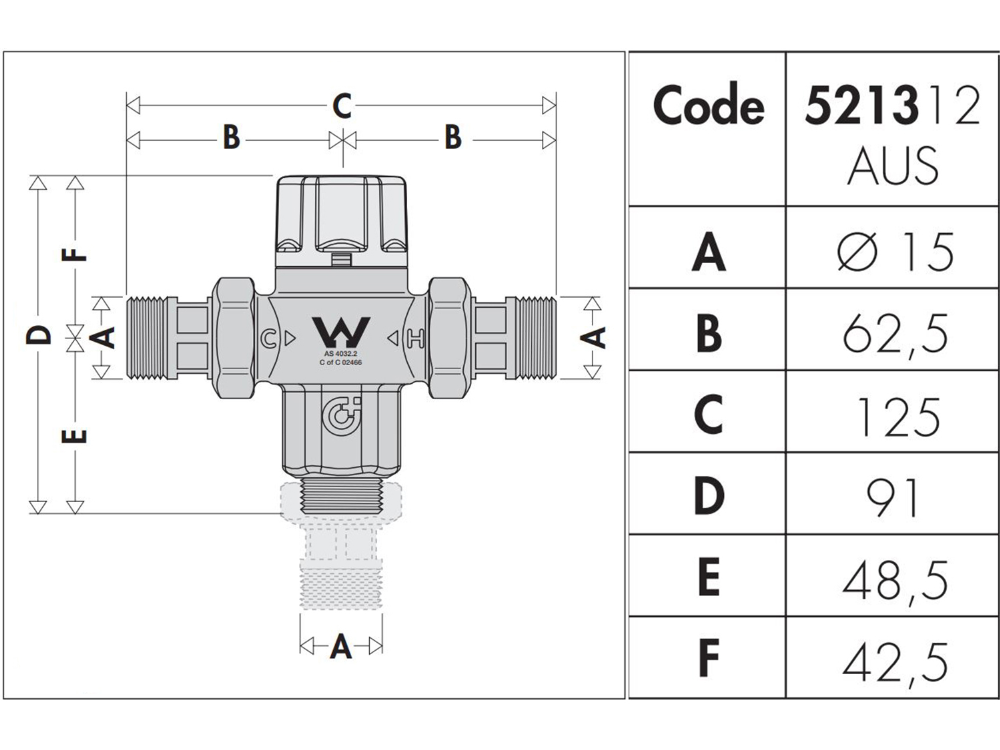

Specifications
| Size | 15mm or 20mm |
