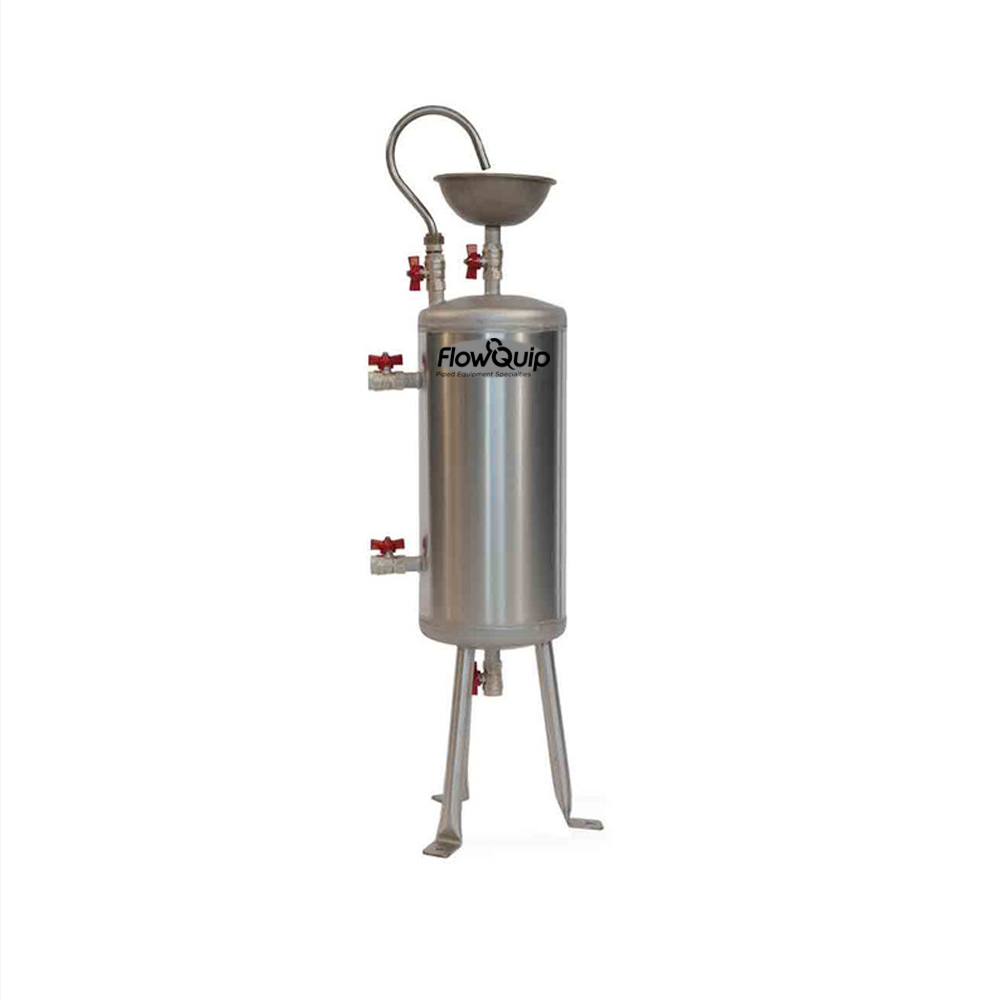

    Chemical Dosing Pot Stainless Steel

    2

    Stainless Chemical dosing pots are designed for a safe and controlled method of adding inhibitors and chemicals to sealed heating and chilled water systems.

    $ 898.17 $ 898.17 898.1700000000001 NZD

    $ 0.00

    Days
    :
    Hours
    :
    Mins
    :
    Secs
    • Capacity

    This combination does not exist.

    Product Code:
    SSHTWM5T
    Product Features -  All pricing exclusive of GST
    • Funnel & valve arrangement to enable: – isolation, draining & re-dosing of the circuit.
    • Dosing pots are used for chemical dosing of sealed heating and chilled water systems with chemical additives to avoid corrosion of pipes and components.
    • Shipped with pictured ball valves for dosing control
    • 304 stainless construction.
    • No power or dosing pumps are needed.
    • Could also be used for dosing Glycol.
    • No rust or Iron is added to the system due to stainless pot construction.
    • Technical Support
    • Express Shipping
      •
    • 24/7 Web Ordering
    Normally 1 week

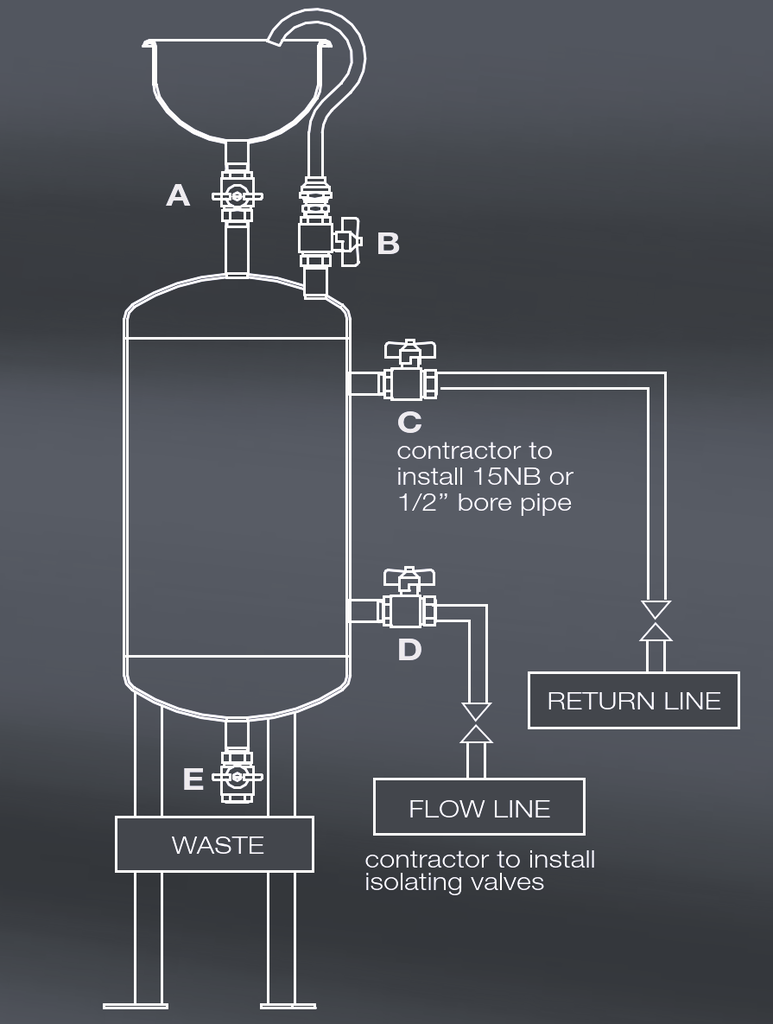

    Please refer to the diagram above or see specification

    Installation

    1. Valve D must be connected to the flow line, or circulating pump discharge line.

    2. Valve C must be connected to the return line, or circulating pump suction line.

    3. Valve E is connected to drainage.

    Dosing Procedure

    1. Close isolating Valves C & D.

    2. Open the dosing pot fill Valve A, air-venting Valve B, & drain Valve E, to empty pot.

    3. Close drain Valve E, and fill the dosing pot with the appropriate product through the funnel.

    4. Close valves A & B to seal pot.

    5. Open isolation Valves C & D to allow circulation through the pot into the system to be treated. Allow sufficient time for chemical treatment to be mixed into the main system.

    6. Close Valves C & D to isolate the pot from the main system.

    Please refer to the diagram above or see specification

    Installation

    1. Valve D must be connected to the flow line, or circulating pump discharge line.

    2. Valve C must be connected to the return line, or circulating pump suction line.

    3. Valve E is connected to drainage.

    Dosing Procedure

    1. Close isolating Valves C & D.

    2. Open the dosing pot fill Valve A, air-venting Valve B, & drain Valve E, to empty pot.

    3. Close drain Valve E, and fill the dosing pot with the appropriate product through the funnel.

    4. Close valves A & B to seal pot.

    5. Open isolation Valves C & D to allow circulation through the pot into the system to be treated. Allow sufficient time for chemical treatment to be mixed into the main system.

    6. Close Valves C & D to isolate the pot from the main system.

    Specifications

    Capacity 15L or 8L
