24L 304 Stainless Expansion Tank - 25mm BSP Male Connection

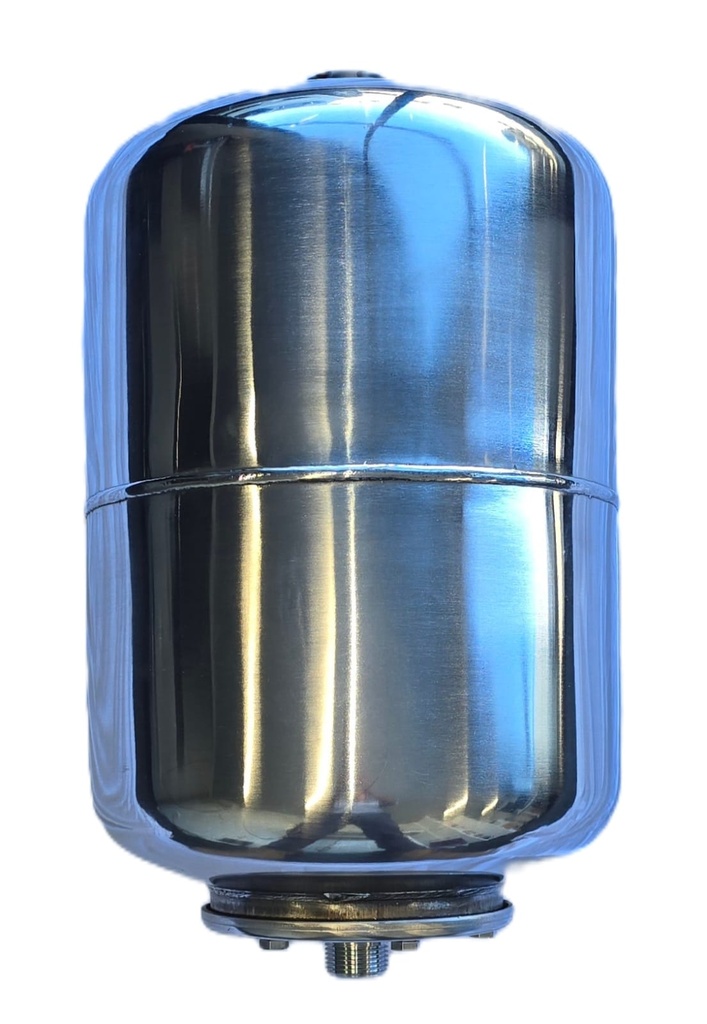

224L 304 Stainless Expansion Tank - 271mm Diameter x 455mm High, 1 inch BSP Male connection. Max liquid temp 90° diaphragm designed for Heating/Cooling duty.
Product Features - All pricing exclusive of GST
- Outside Diameter 271mm (Excluding weld seam)
- 455mm Height.
- EPDM Diaphragm.
- Max liquid temp 90°c
- Draw down Capacity data:
- Precharge air pressure 0.5 Bar, System fill max to 3.0 Bar, Draw down to 1 bar Available drawdown 7.2L
- Precharge air pressure 0.5 Bar, System fill max to 4.5 Bar, Draw down to 1.0 bar Available drawdown 9.5L
- Precharge air pressure 0.5 Bar, System fill max to 5 Bar, Draw down to 0.0 bar (Empty) Available drawdown 13.5L
