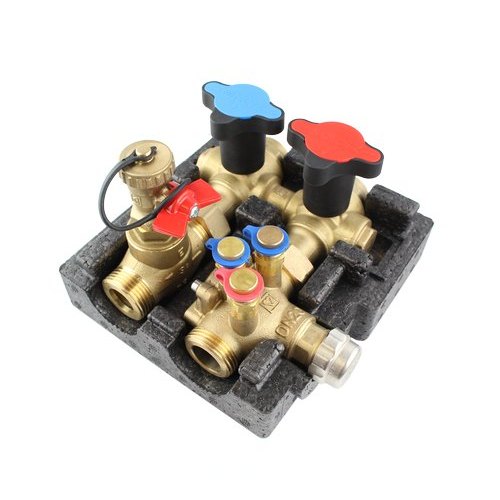

HERZCON Compact Smart PICV Valve Station

HERZCON Compact Smart PICV Valve Station

HERZCON PICV (Pressure independent control valve) Combi block assembly
  • Valve Size/Flow Rate
Product Code:
N/A
Product Features:
  • HerzCON direct connection for fan coil
  • Models with 65 mm pipe centre spacing
  • Enables processes such as regulation, flushing and isolation
  • Including bypass for flushing according to BSRIABG29/2011
  • All components of dezincification-resistant brass
  • Suitable for heating and cooling systems
  • HERZ 4006 SMART PICV
  • Multifunctional HERZ ball valve
  • HERZ strainer with HERZ draining valve 2512
  • Including black insulation box
  • max. operating temperature 130°C, min. operating temperature -20°C, max. operating pressure 25 bar.
  • DN15LF and DN15MF model with 2 quick test points. DN15SF, DN15HF, DN20SF, DN20HF model with 3 quick test points.
  • Drives, screw connections and compression adapters must be ordered separately.
Request Project Pricing,
Availablity, Technical Information
