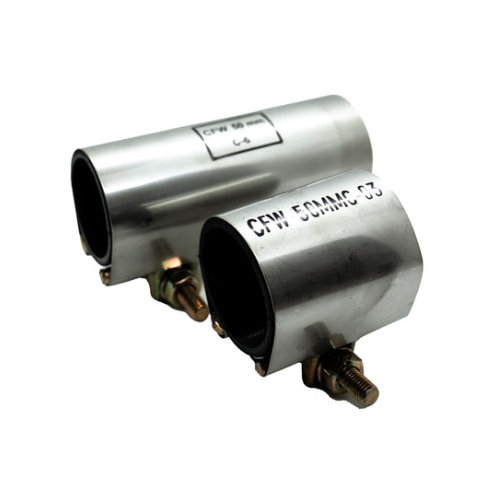

SS Pipe Repair Clamps Half Circle
2Quick repair fix for pin-hole leaks in pipes
Product Features - All pricing exclusive of GST
- 75mm & 150mm lengths available
- Made from 316 Stainless Steel
- Suit Temperature range of 0°C through to 60°C
Pipe repair clamps offer a versatile option for repairing pin-hole leaks in smaller pipes. Available in two lengths of 75mm & 150mm, the repair clamps work by providing a seal to the pipe disallowing the leak to continue providing a permanent repair solution for most common pipe sizes.
- Locking Washer Plate: Locks into position for easy tightening of nuts.
- Lugs: MIG-welded to receiver bar and fully passivated after welding.
- The leading edge is rounded to prevent them from catching bolt bars during installation.
- Shell: 2B finish. Grade of stainless steel, Type 316.
- Fully passivated after welding to restore the original passive state of the 316 stainless steel.
- Bolts: Thread-rolled for strength and coated to prevent galling. Bolts are MIG-welded to the receiver bar and fully passivated after welding.
- Nuts/Washers: Type 316 stainless steel. Receiver Bars: TIG-welded to shell to form a strong fusion and fully passivated after welding.
- Gasket: Nitrile rubber is specially formulated for water service incorporating antioxidant agents to increase shelf life. All gaskets have a grid design, tapered ends and vulcanised armour plates for easy installation and optimum sealing efficiency. Natural rubber is available on request.
- Armour: Heavy gauge 316 stainless steel vulcanised into the gasket at the time of moulding
Specifications
| Pipe Clamp Size | 75/15 or 75/20 or 75/25 or 75/32 or 75/40 or 75/50 or 75/65 or 75/75 or 75/100 or 150/15 or 150/20 or 150/25 or 150/32 or 150/50 or 150/75 or 150/100 or 150/40 or 150/65 |
