ThermaCon Buffer Tank Carbon Steel 4 Port Flanged, Indoor Insulation

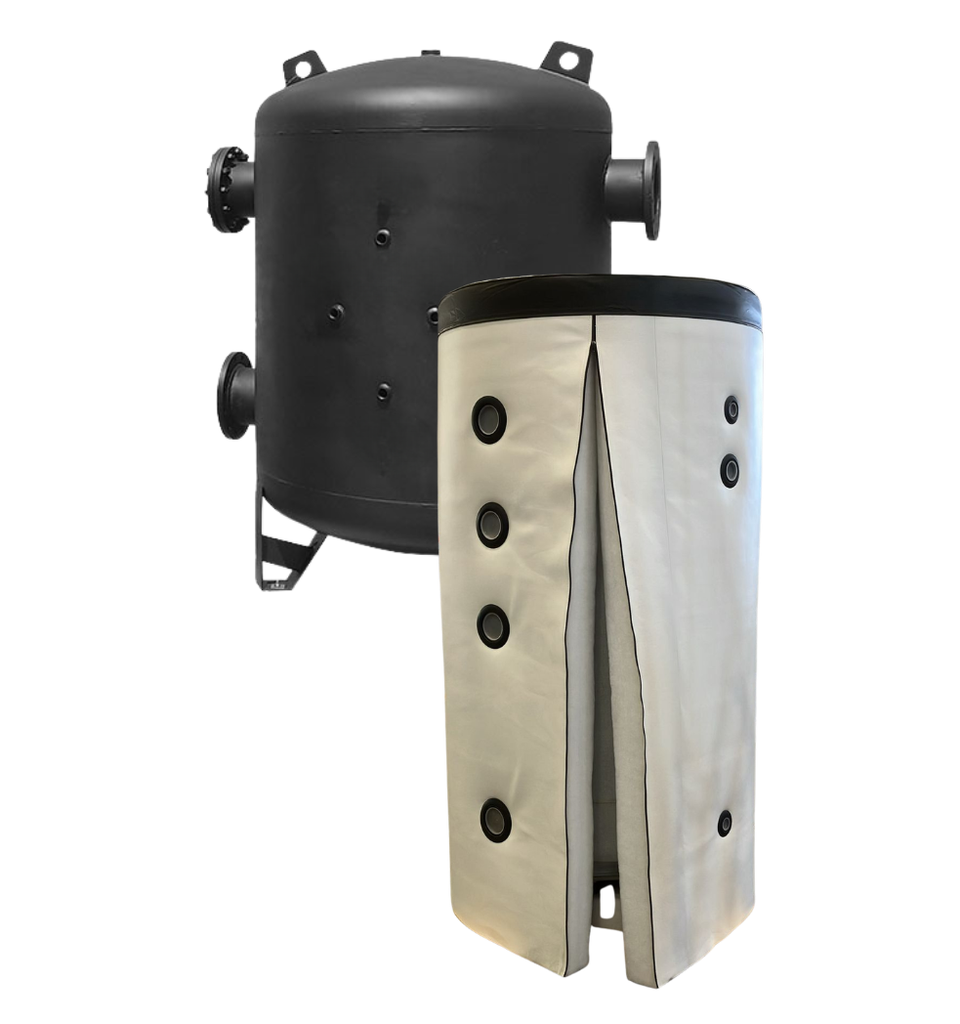

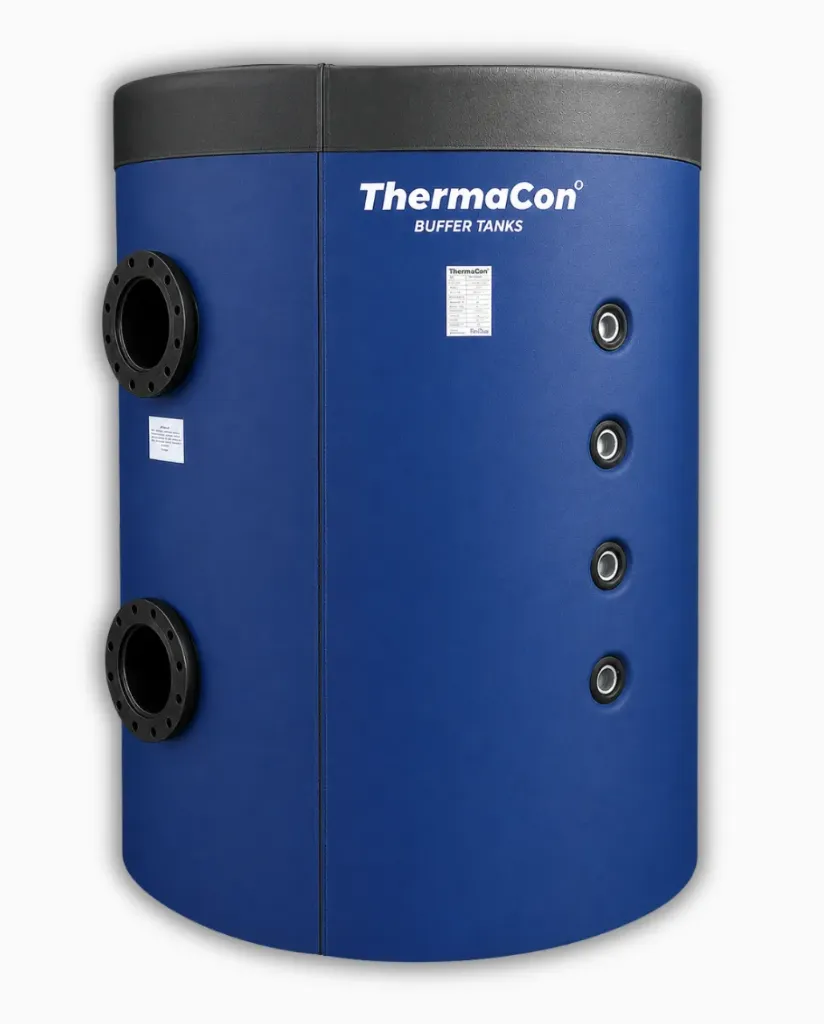

2ThermaCon Heating or Cooling Indoor Buffer tank, Insulated with PVC jacket 6 bar rated Carbon steel construction, with 4 x flange ports and threaded auxiliary connections
Product Features - All pricing exclusive of GST
- Carbon steel 6-bar rated Tank, external Anti-rust painted.
- 4 x DIN flange connections: 150mm 1000-1500L and 200mm for 2000L - 5000L.
- Insulation: 20mm glued closed-cell foam (Vapour barrier) + 80/100mm Polyester and PVC Jacket. Approximate total insulation-only thermal resistance of the system is R +3.0 m²·K/W
- Fluid temp limits: -10/+60°c (80°c on request)
- Aux Connections/ports: 40mm BSP drain and vent. 4 x 25mm side ports for gauges/instruments.
- Side brackets plates for ease of seismic restraint or horizontal transportation.
- Can be used as a 4-port or 2-port buffer.
- Normal applications include: Hot water heat pump thermal buffer tank, Water chiller inertia tank, Boiler system primary-secondary buffer, and Hydronic heat storage.
- Dimensional drawings available for each size.
ThermaCon Heating or Cooling Indoor Buffer tank, Insulated with PVC jacket 6 bar rated Carbon steel construction, with 4 x flange ports and threaded auxiliary connections. Suitable for closed-loop heating/Cooling and Glycol applications. Optional Side brackets for ease of additional seismic restraint.
Specifications
| Thermacon Tank Size | 1000L or 1500L or 2000L or 2500L or 3000L or 4000L |
