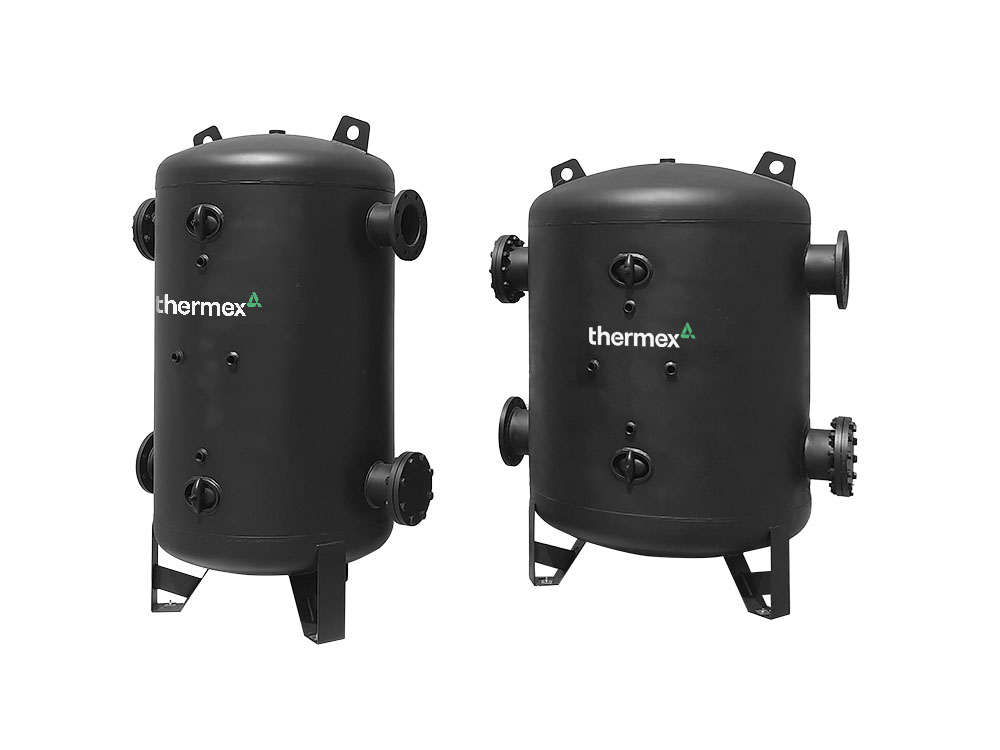

Thermex TSUZ Series Buffer Storage Tank
2Thermex TSUZ Series heating or cooling Buffer Storage Tank Mild Steel painted 4 port with flanged connections, uninsulated.
Product Features - All pricing exclusive of GST
- See the description tab for all sizes and dimensions.
- Material Mild Steel.
- Suitable for both chilled and heating applications.
- It can be clad for outside applications.
- Max pressure 6 Bar.
- low profile for tight plant spaces.
- Vent and drain connections.
- Flanges are PN10/16 as standard.
Model | Volume (L) | Height (mm) | Diameter (mm) | Flanged Connections |
TSUZ00500L0650 | 500 | 1770 | 650 | 4 x 50mm |
TSUZ01000L0850 | 1000 | 1975 | 850 | 4 x 150mm |
TSUZ01500L1000 | 1500 | 2000 | 1000 | 4 x 150mm |
TSUZ02000L1250 | 2000 | 1935 | 1250 | 4 x 200mm |
TSUZ02500L1400 | 2500 | 1960 | 1400 | 4 x 200mm |
TSUZ03000L1600 | 3000 | 1970 | 1600 | 4 x 200mm |
TSUZ04000L1800 | 4000 | 2000 | 1800 | 4 x 200mm |
TSUZ05000L1800 | 5000 | 2400 | 1800 | 4 x 200mm |
TSUZ06000L2000 | 6000 | 2450 | 2000 | 4 x 200mm |
TSUZ08000L2000 | 8000 | 3200 | 2000 | 4 x 200mm |
TSUZ10000L2000 | 10000 | 3800 | 2000 | 4 x 200mm |
TSUZ14000L2200 | 14000 | 3800 | 2200 | 4 x 250mm |
TSUZ30000L2200 | 30000 | 8200 | 2200 | 4 x 250mm |
TSUZ35000L2200 | 35000 | 9800 | 2200 | 4 x 250mm |
Specifications
| Buffer Tank Volume | 500 or 1000 or 1500 or 2000 or 2500 or 3000 or 4000 or 5000 |
