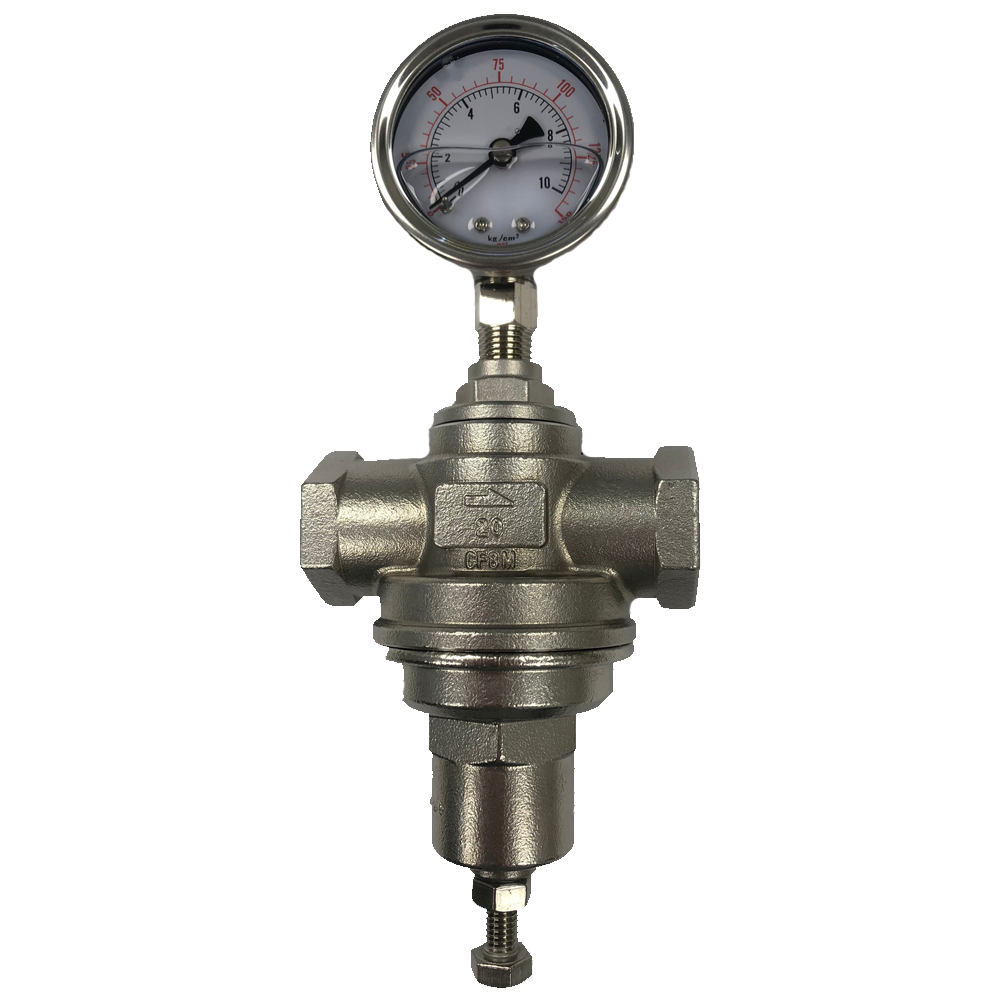

The Direct-Activated Pressure-Reducing Valve is a control valve that reduces the input pressure of a fluid to a desired value at its output, protecting pipelines and systems from overpressure by providing consistent outlet pressure. This gives the ability to maintain consistent and precise pressure to optimize the system and equipment. Direct-Activated Pressure-Reducing valves have been utilized in a wide range of sectors, such as (but not limited to) Industrial, Building, Food & Beverage, Pharmaceutical and Water Sectors. These valves can be generally used for gases and liquids.
| Size (mm) | Approximate Pressure Loss |
| 15 | CV 2.4 - 0.19 bar at 15 l/min, 1.34 bar at 40 l/min |
| 20 | CV 4.0 - 0.27 bar at 30 l/min, 1.1 bar at 60 l/min |
| 25 | CV 6.5 - 0.40 bar at 60 l/min, 1.14 bar at 100 l/min |
| 32 | CV 13 - 0.18 bar at 80 l/min, 0.64 bar at 150 l/min |
| 40 | CV 13 - 0.18 bar at 80 l/min, 0.64 bar at 150 l/min |
| 50 | CV 17 - 0.17 bar at 100 l/min, 1.05 bar at 250 l/min |
Please note: The 32mm valve is a 40mm valve body factory fitted with thread reducing bushes.
