Pressure Gauge 100mm SS Liquid Filled 3/8" BSPT Bottom Entry 0~1000 kpa Brass Internals
0%
Off
Pressure Gauge 100mm SS Liquid Filled 3/8" BSPT Bottom Entry 0~1000 kpa Brass Internals

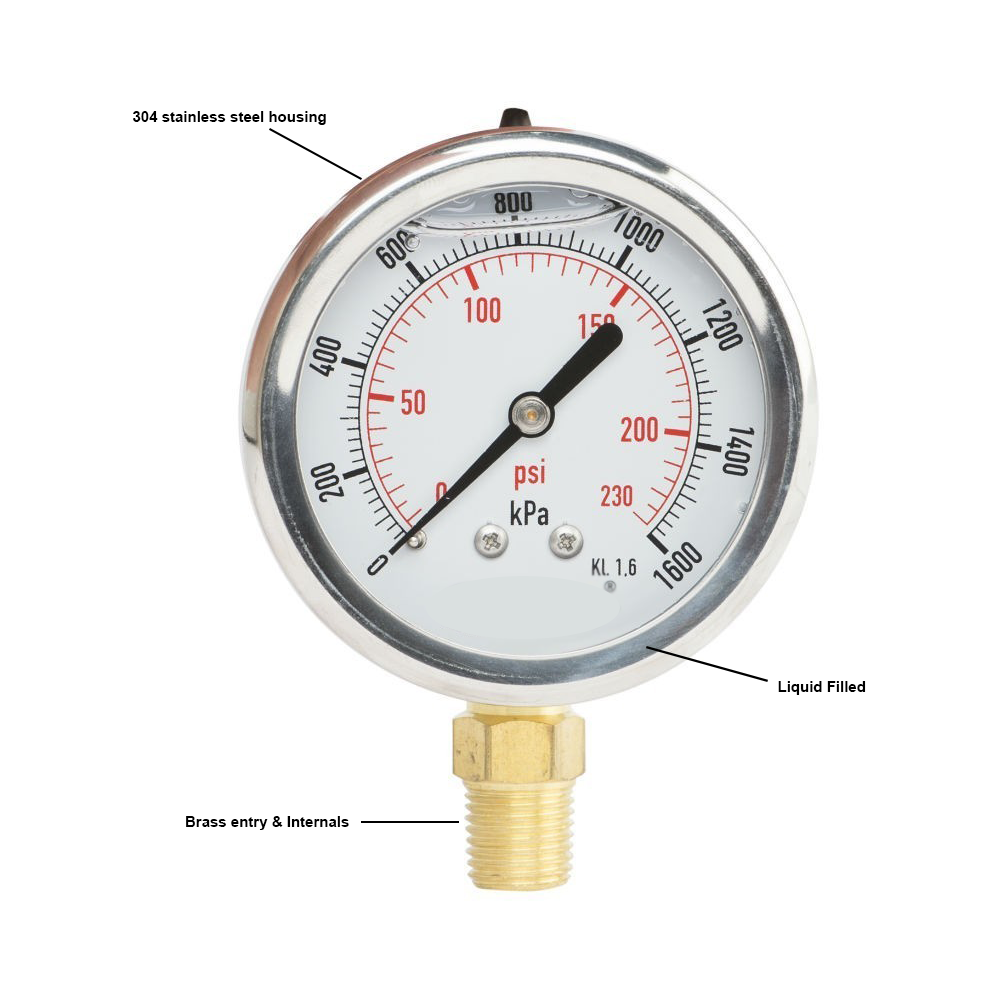

2Stainless Steel 100mm glycerine-filled pressure gauge with brass internals and connection. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.
Product Features - All pricing exclusive of GST
| Size | 100mm (4") |
| Accuracy | =+/- 1.6% |
| Range | Depends upon model |
| Work Pressure | 3/4 of full scale |
| Fluctuating pressure | 2/3 of full scale |
| Short Time Pressure | Full Scale |
| Operating Temperature | -10°C to 60°C |
| Media | Compatible gases and liquids |
| Housing | 304 Stainless Steel Case and crimped ring |
| Window | Polycarbonate |
| Liquid Filled | Glycerine |
| Bourdon Tube | Copper alloy |
| Movement | Copper alloy |
| Connection | Brass |
| Thread | BSPT |
| Scale | Dual Scale kPa/PSI |
Factory Accredited CE, ISO 9001, TUV
