Pressure Gauge 100mm Fully Stainless Steel Liquid Filled 3/8" BSPT Bottom Entry 0~1000 kpa
0%
Off
Pressure Gauge 100mm Fully Stainless Steel Liquid Filled 3/8" BSPT Bottom Entry 0~1000 kpa

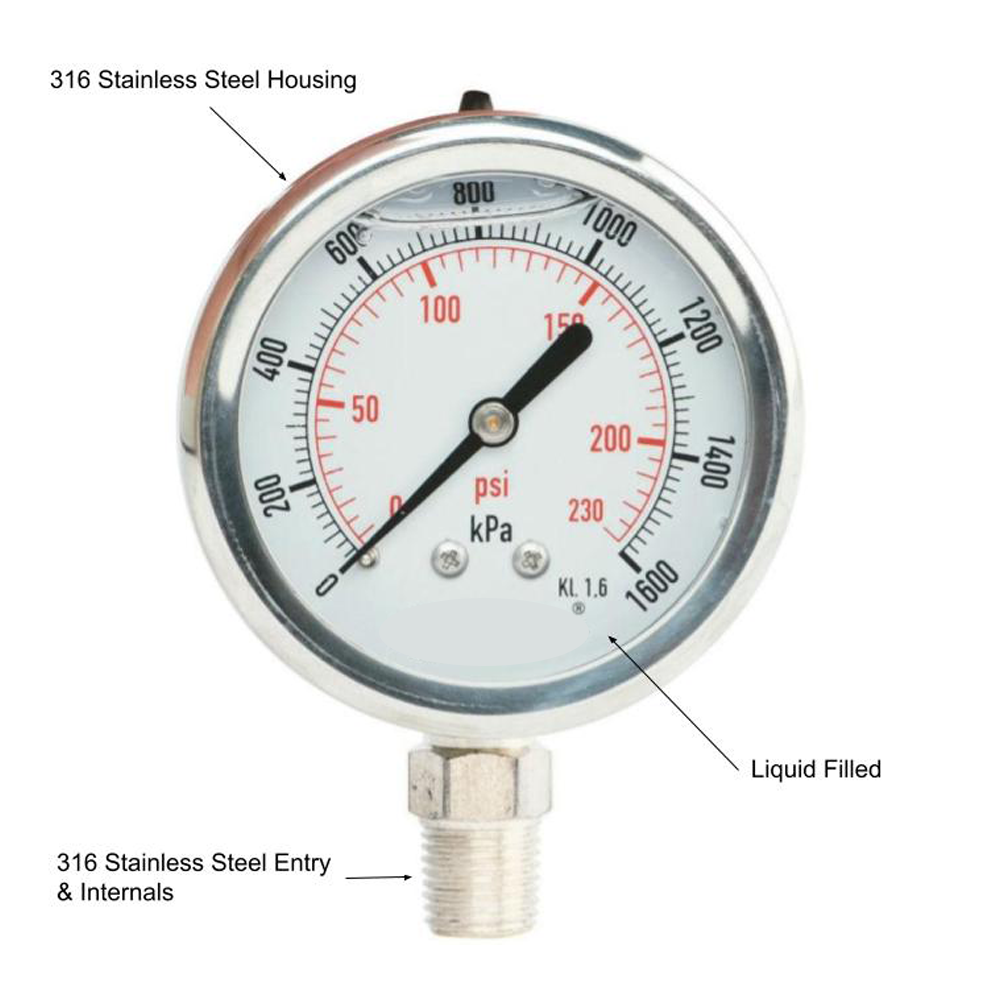

2Full Stainless Steel 100mm glycerin filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.
Product Features - All pricing exclusive of GST
| Size | 100mm (4") |
| Accuracy | +/- 1.0% |
| Range | Depends upon model |
| Work Pressure | 3/4 of full scale |
| Fluctuating pressure | 2/3 of full scale |
| Short Time Pressure | Full Scale |
| Operating Temperature | -10°C to 60°C |
| Media | Compatible gases and liquids |
| Housing | 316 Stainless Steel Case with Bayonnet Bezel |
| Window | Polycarbonate |
| Liquid Filled | Glycerine |
| Bourdon Tube | 316 Stainless Steel |
| Movement | 316 Stainless Steel |
| Connection | 316 Stainless Steel |
| Thread | 3/8" BSPT |
| Scale | Dual Scale kPa/PSI |
Factory Accredited CE, ISO 9001, TUV
Full Stainless Steel 100mm glycerin filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.
