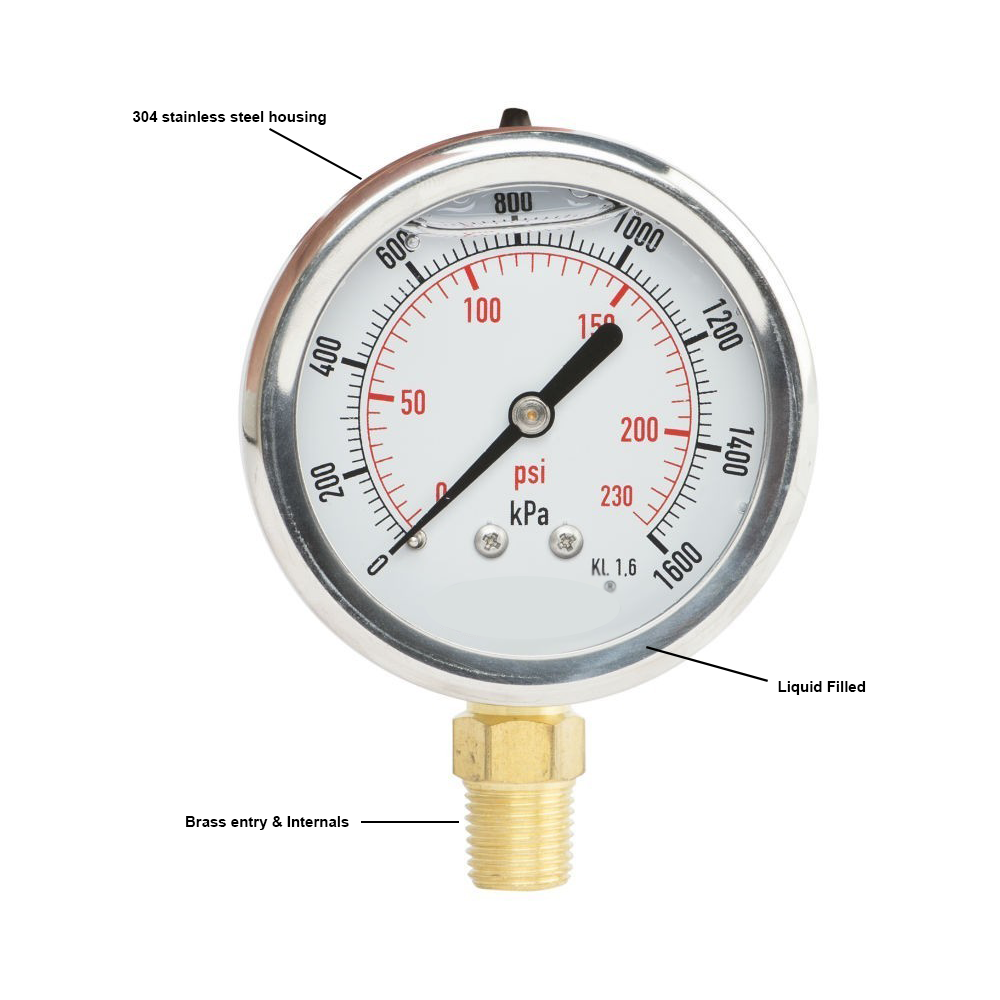

Pressure Gauge 100mm SS Liquid Filled 3/8" BSPT Bottom Entry 0~1000 kpa Brass Internals

Stainless Steel 100mm glycerine-filled pressure gauge with brass internals and connection. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.

Add to cart
Category: Temp & Pressure Gauges
Product Features:


    Size100mm (4")
    Accuracy=+/- 1.6%
    RangeDepends upon model
    Work Pressure3/4 of full scale
    Fluctuating pressure2/3 of full scale
    Short Time PressureFull Scale
    Operating Temperature-10°C to 60°C
    MediaCompatible gases and liquids
    Housing304 Stainless Steel Case and crimped ring
    WindowPolycarbonate
    Liquid FilledGlycerine
    Bourdon TubeCopper alloy
    MovementCopper alloy
    ConnectionBrass
    ThreadBSPT
    ScaleDual Scale kPa/PSI

    Factory Accredited CE, ISO 9001, TUV
Click here for Rapid Info,
Leadtime & Pricing
Normally Available For Immediate Dispatch
