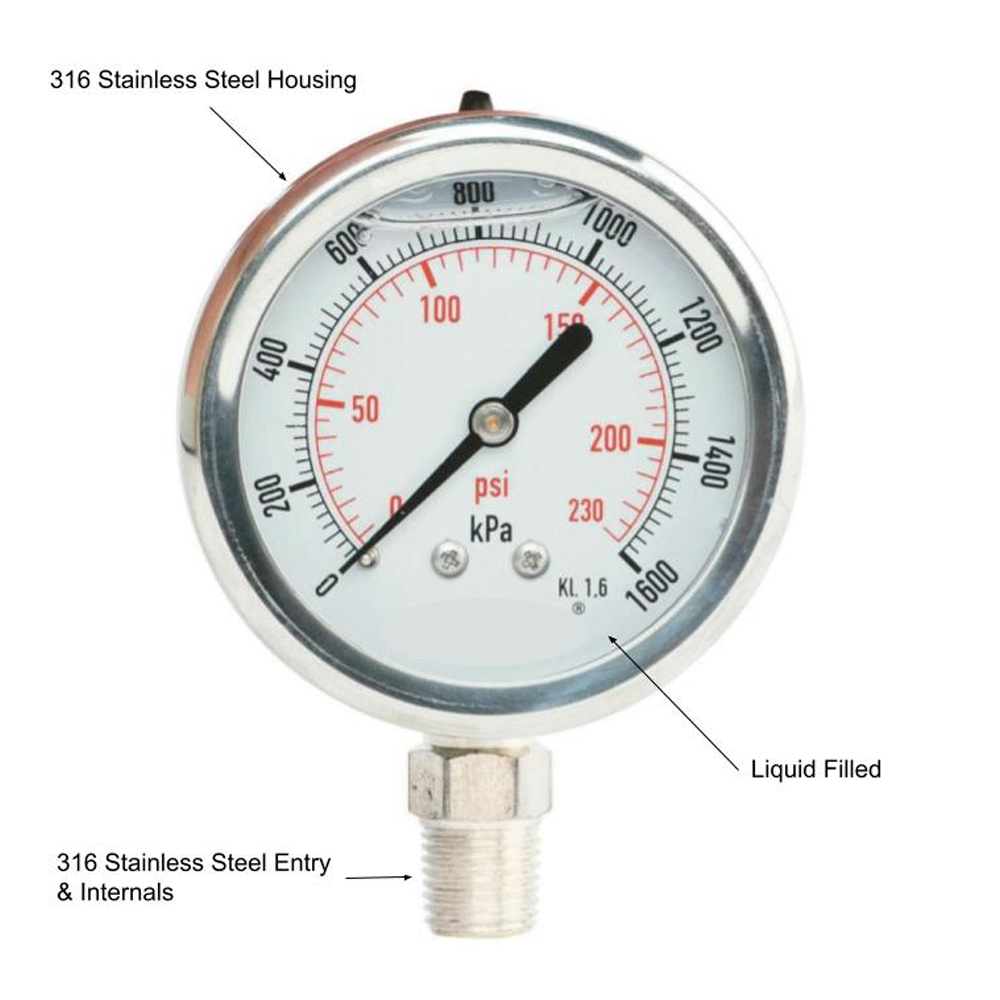

Pressure Gauge 100mm Fully Stainless Steel Liquid Filled 3/8" BSPT Bottom Entry 0~1000 kpa

Full Stainless Steel 100mm glycerin filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.

Add to cart
Category: Temp & Pressure Gauges
Product Features:
Size100mm (4")
Accuracy+/- 1.0%
RangeDepends upon model
Work Pressure3/4 of full scale
Fluctuating pressure2/3 of full scale
Short Time PressureFull Scale
Operating Temperature-10°C to 60°C
MediaCompatible gases and liquids
Housing316 Stainless Steel Case with Bayonnet Bezel
WindowPolycarbonate
Liquid FilledGlycerine
Bourdon Tube316 Stainless Steel
Movement316 Stainless Steel
Connection316 Stainless Steel
Thread3/8" BSPT
ScaleDual Scale kPa/PSI

Factory Accredited CE, ISO 9001, TUV

Click here for Rapid Info,
Leadtime & Pricing
Contact Us
Product Code:
N/A

Full Stainless Steel 100mm glycerin filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.
