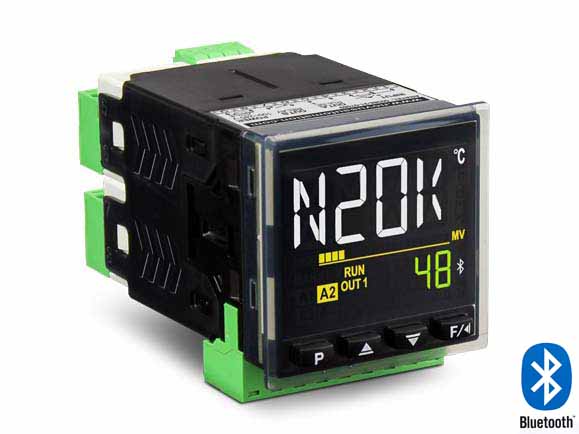

N20K48 Multifunction PID/Temperature Modular Bluetooth Controller
0%
Off
N20K48 Multifunction PID/Temperature Modular Bluetooth Controller
2N20K48 Multifunction PID/Temperature Modular Bluetooth Controller is an extremely versatile process controller
Product Features - All pricing exclusive of GST
- Modular PID temperature or process controller
- 12-24VDC, 24VAC, 230VAC
- Inputs: 1 for type J/K/T/R/S/E/B/N thermocouples,PT100 sensors or 0-10V or 4-20ma signals.
- Outputs as standard: 1 x Relay / 1 x impulse
- PID output signal as standard: pulse width modulation (PWM)/Auto tune
- Ramp and retaining profile for up to 20 programmes or 9 segments
- Interfaces: USB/Bluetooth/Wifi - (With additional module)
- Bluetooth Quick Tune app for setup, programing, diagnostics, logging via PC or Smartphone
- Removable terminal connection block
- Click and Go Modules add additional Outputs - See accessory products
- Supply voltage: 24 V AC/DC 230 V AC/DC
- Display: LED (2 x 4 lights)
- Dimensions: 48 x 48 x 110 mm (1/16 DIN)
- Mounting: control panel integration (panel cut-out 45.5 x 45.5 mm)
- Connection: screw terminals
Specifications
Voltage | 24V or 230V |
