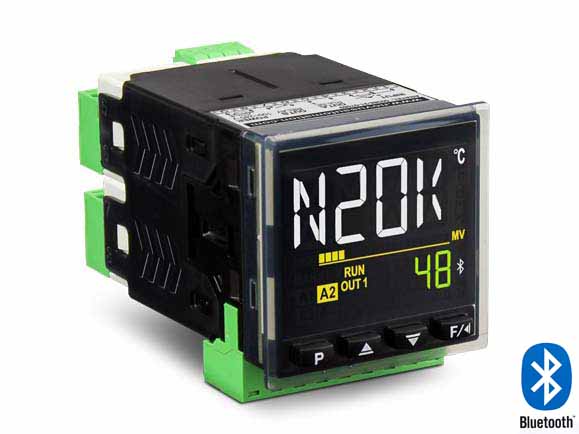

N20K48 Multifunction PID/Temperature Modular Bluetooth Controller

N20K48 Multifunction PID/Temperature Modular Bluetooth Controller is an extremely versatile process controller

  • Voltage
Add to cart
Category: Controls & Sensors
Product Features:
  • Modular PID temperature or process controller
  • 12-24VDC, 24VAC, 230VAC
  • Inputs: 1 for type J/K/T/R/S/E/B/N thermocouples,PT100 sensors or 0-10V or 4-20ma signals.
  • Outputs as standard: 1 x Relay / 1 x impulse
  • PID output signal as standard: pulse width modulation (PWM)/Auto tune
  • Ramp and retaining profile for up to 20 programmes or 9 segments
  • Interfaces: USB/Bluetooth/Wifi - (With additional module)
  • Bluetooth Quick Tune app for setup, programing, diagnostics, logging via PC or Smartphone
  • Removable terminal connection block
  • Click and Go Modules add additional Outputs - See accessory products
  • Supply voltage: 24 V AC/DC 230 V AC/DC
  • Display: LED (2 x 4 lights)
  • Dimensions: 48 x 48 x 110 mm (1/16 DIN)
  • Mounting: control panel integration (panel cut-out 45.5 x 45.5 mm)
  • Connection: screw terminals
Click here for Rapid Info,
Leadtime & Pricing
Normally Available For Immediate Dispatch
