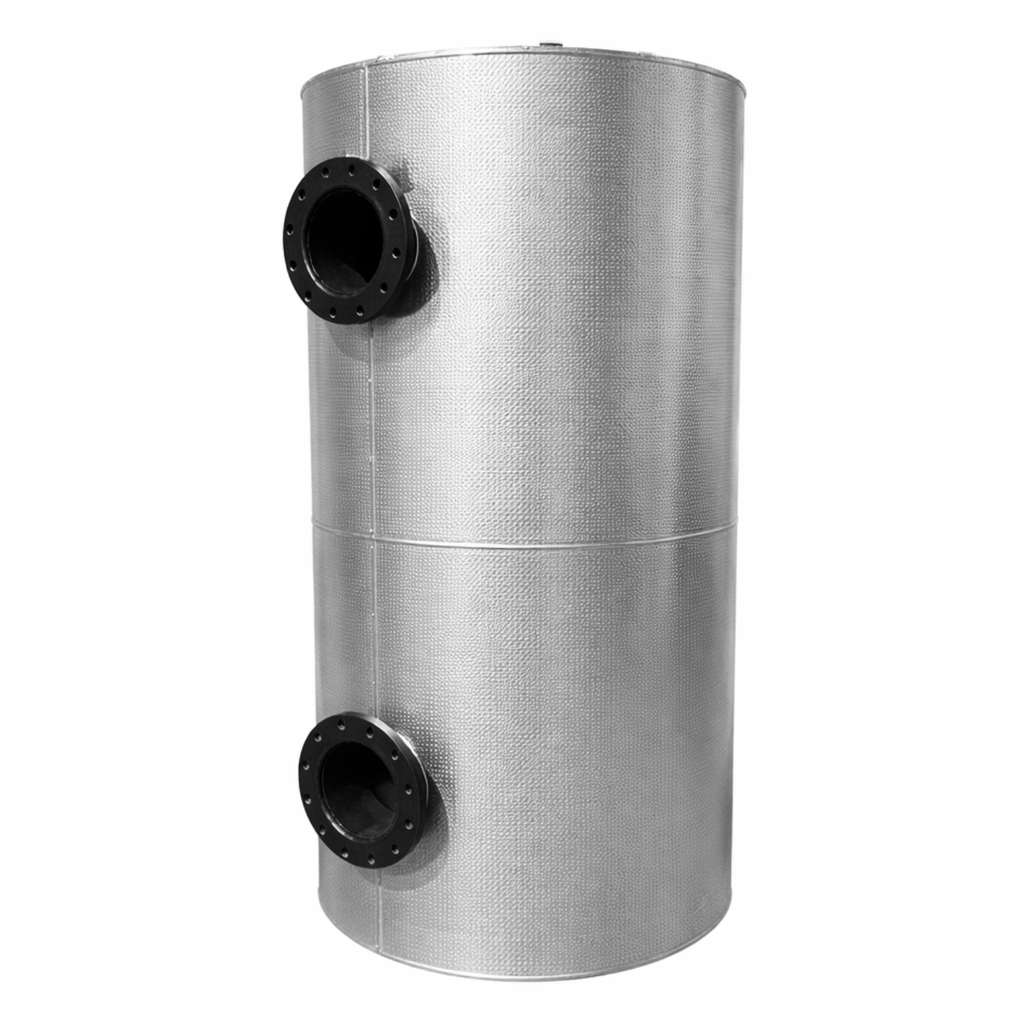

ThermaCon Buffer Tank Carbon Steel 4 Port with Outdoor Insulation

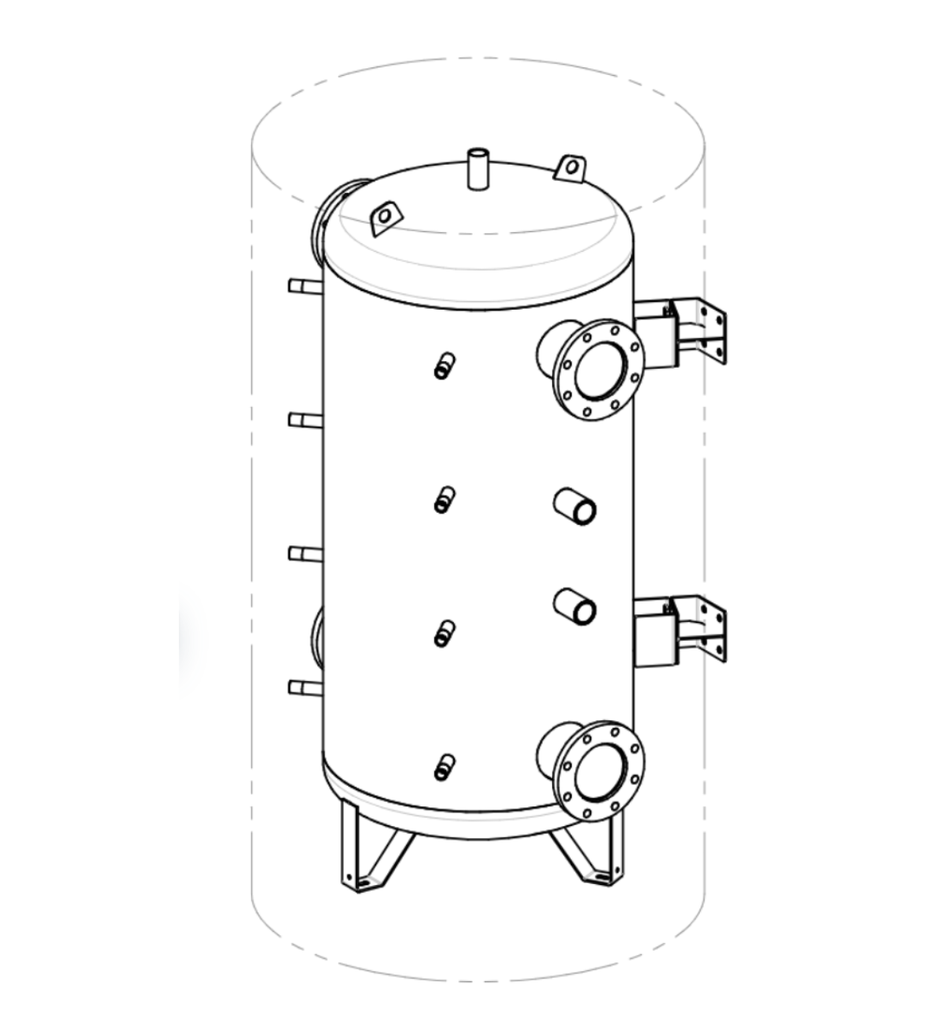

2ThermaCon Heating or Cooling Outdoor Buffer tank, Insulated, Aluminium clad & sealed, 6 bar rated Carbon steel construction, with 4 x flange ports and screwed auxiliary connections. Suitable for closed-loop heating/Cooling and Glycol applications. Optional Side brackets for seismic restraint.
Product Features - All pricing exclusive of GST
- Carbon steel 6-bar rated Tank, external Anti-rust painted.
- 4 x DIN flange connections: 150mm 1000-1500L and 200mm for 2000L - 5000L.
- Insulation: 20mm glued closed-cell foam, 80/100mm Polyester, Aluminium outer (suitable for outdoors). Approximate total insulation-only thermal resistance of the system is R +3.0 m²·K/W.
- Fluid temp: -10/+60°c (80°c on request)
- Aux Connections/ports: 40mm BSP drain and vent. 4 x 25mm side ports for gauges/instruments.
- Side brackets plates for ease of seismic restraint.
- Can be used as a 4-port or 2-port buffer.
- Normal Applicationsinclude: Hot water heat pump thermal buffer tank, Water chiller inertia tank, Boiler system primary-secondary buffer, and Hydronic heat storage.
Specifications
| Thermacon Tank Size | 1000L or 2000L or 2500L |
